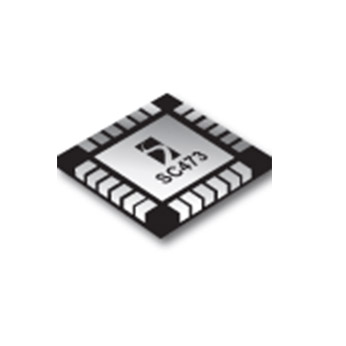

SC473
Not Recommended for New Designs
Not recommended for new designs.
Features
- Single-Phase Solution with Integrated Drivers
- Hysteretic Control for Fast Transient Response
- SmartDriver™ for reduced EMI
- True Differential Remote (die) Sensing
- VID Programmed Voltage
- Delayed Power Good Signal with Blanking
- Programmable Soft-Start and DAC Slew Control
- Programmable OCP Threshold
- Supports all Ceramic Decoupling Solutions
- 24-Pin MLP (4x4)
- Lead-Free Package
- RoHS and WEEE compliant
- High Performance Graphics
- Embedded Applications
アプリケーション
Packaging
- MLPQ-24
Order Codes
- SC473MLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
