SC4626
Not Recommended for New Designs
Not recommended for new designs.

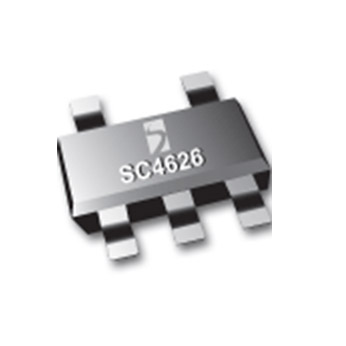

The SC4626 is a high efficiency, synchronous step-down regulator providing up to 1A output current in a SOT23-5 package. The device requires only three external filter components for a complete step-down regulator solution.
Features
- Vin Range: 2.9 – 5.5V
- Vout Options: 1.0 - 3.3V
- Up to Output Current
- 2.5MHz Switching Frequency
- Efficiency Up to 93%
- Low Output Noise Across Load Range
- Excellent Transient Response
- Start Up into Pre-Bias Output
- 100% Duty-Cycle Low Dropout Operation
- <1μA Shutdown Current
- Internal Soft Start
- Input Under-Voltage Lockout
- Output Over-Voltage, Current Limit Protection
- Over-Temperature Protection
- SOT23-5 Package
- -40 to 85°C Temperature Range
- Fully WEEE and RoHS Compliant
- Bluetooth Radios
- DSC and PMPs
- GPS Devices
- xDSL Systems
- POL Regulators
- Portable HDD
- Wireless LAN
アプリケーション
Packaging
- SOT23-5
Order Codes
- SC4626xSKTRT: Lead-Free, WEEE and RoHS compliant, 3000 pcs, Tape and Reel Only
- SC4626xEVB; SC4626x Evaluation Board
