SC4620
Not Recommended for New Designs
Not recommended for new designs.
Features
- VIN Range: 2.3 – 5.5V
- 2.5A Continuous Output Current
- Adjustable Output Voltage 0.5V to Vin
- Up to 95% Efficiency
- Synchronizable and Programmable Frequency: 200kHz – 2MHz
- Power Good Monitor
- <1μA of Shutdown Current
- Programmable Soft Start
- Programmable Current Limit
- Over Temperature protection
- -40 to +85 °C Ambient Temperature Range
- 4X4mm MLPQ-20 packages- WEEE and RoHS compliant
- Low Voltage Distributed DC-DC Converters
- Telecommunication Power Supplies
- Portable Equipment
- xDSL
アプリケーション
Packaging

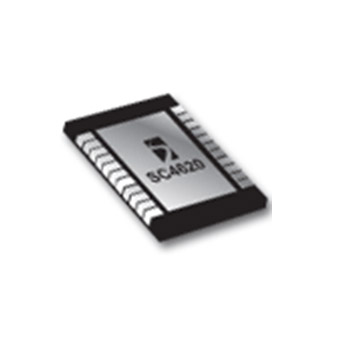

- MLPQ-20 4x4mm
Order Codes
- SC4620MLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4620
Part Description
LOW IMPUT VOLTAGE, HIGH EFFICIENCY, 2.5A INTEGRATED FET SYNCHRONOUS STEP DOWN DC/DC REGULATOR
# of leads
20
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
