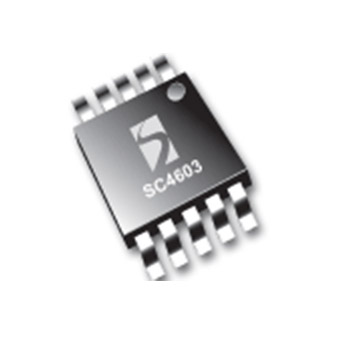

SC4603
Not Recommended for New Designs
Not recommended for new designs.
The SC4603 is a voltage mode step down (buck) regulator controller that provides accurate high efficiency power conversion from input supply range 2.25V to 5.5V. A high level of integration reduces external component count and makes it suitable for low voltage applications where cost, size and efficiency are critical.
Features
- BiCMOS voltage-mode PWM controller
- 2.25 V to 5.5 V Input voltage range
- Output voltages as low as 0.5 V
- Sleep mode (Icc = 10 μA typ)
- Lossless adjustable over-current protection
- Combination pulse by pulse & hiccup mode current limit
- High-efficiency synchronous switching
- 0% to 100% duty cycle range
- Synchronization to external clock
- Asynchronous start-up
- 1 MHz frequency of operation
- 10-pin MSOP surface mount package
- Distributed power architecture
- Servers/workstations
- Local microprocessor core power supplies
- DSP and I/O power supplies
- Battery-powered applications
- Telecommunication equipment
- Data processing applications
アプリケーション
Packaging
- MSOP-10
Order Codes
- SC4603IMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC4603
Part Description
VERY LOW INPUT, MHZ OPERATION HIGH EFFICIENCY SYNCHRONOUS BUCK
# of leads
10
Package Type
MSOP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
