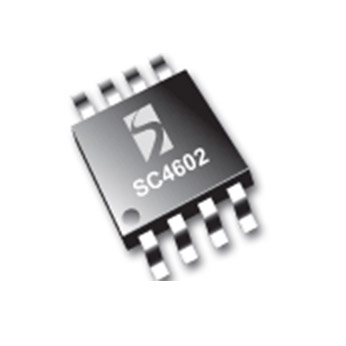

SC4602
Not Recommended for New Designs
Not recommended for new designs.
Features
- BiCMOS voltage-mode PWM controller
- 2.75 V to 5.5 V input voltage range
- Output voltages as low as 0.8 V
- ± 1% reference accuracy
- Sleep mode (ICC = 10 µA typ.)
- Lossless short-circuit current limiting
- Combination pulse by pulse & hiccup mode current limit
- High-efficiency synchronous switching
- 0% to 100% duty cycle range
- Synchronization to external clock
- 8-pin MSOP surface-mount package
- Distributed power system
- RF power supply
- Local microprocessor core power supplies
- DSP and I/O power supplies
- Battery-powered applications
- Servers and workstations
アプリケーション
Packaging
- MSOP-8
Order Codes
- SC4602BIMSTR: Package Minimum Tape & Reel Only
- SC4602BIMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
