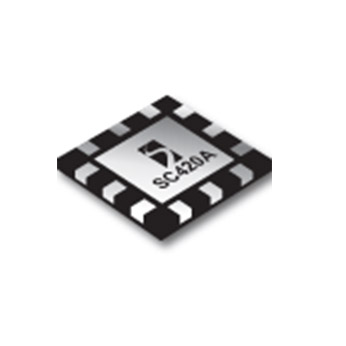

SC420A
Not Recommended for New Designs
Not recommended for new designs.
Features
- Combi-Sense™ dual MOSFET driver
- High efficiency
- Shutdown mode for increased power saving
- Fast rise and fall times (10 ns typical with 3000 pF load)
- 5 V gate drive
- Ultra-low (<30 ns) propagation delay (BG going low)
- Adaptive and programmable non-overlapping gate drives provide shoot-through protection
- Floating top drive switches up to 27 V
- High frequency operation allows use of small inductors and low-cost ceramic capacitors
- Under-voltage lockout
- Low quiescent current
- MLP-12 package provides superior thermal performance in a small footprint
Packaging
- MLP-12
Order Codes
- SC420AIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
