SC415
Not Recommended for New Designs
Not recommended for new designs.
Features
- VIN Range 3-25V
- Outputs Adjustable from 0.75 to 5.25V, or Preset Output Voltages:
- VOUT1 = 1.8 or 1.5V
- VOUT2 = 1.25 or 1.05V
- Low Shutdown Power
- Constant On-Time for Fast Dynamic Response
- Adjustable Switching Frequency
- Separated Frequencies for Minimal Switching Interaction:
- VOUT1 = up to 600kHz
- VOUT2 = up to 720kHz
- Power Save or Continuous Operation at Light Load
- Adjustable Soft-start Rates for Each Output
- Soft-Shutdown for Each Output
- Over-Voltage and Under-Voltage Fault Protection
- Cycle-by-Cycle Valley Current Limit
- DC Current Sense Using Low-Side RDSON Sensing, or RSENSE in Source of Low-Side MOSFET for Greater Accuracy
- Separate Power Good Outputs
- Separate Enable/Power Save Inputs
- 3.1A Non-Overlapping Gate Drive
- SmartDriveTM for High-Side MOSFET

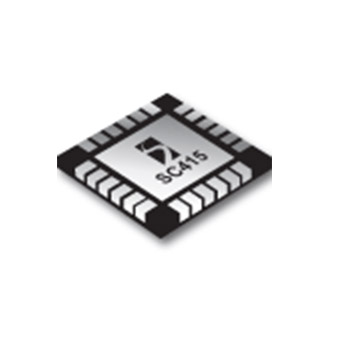

- MLP 4x4 24 Pin Package
- Industrial Temperature Range
- Notebook and Sub-Notebook Graphics
- Voltage Controllers
- Tablet PCs
- Embedded Applications
アプリケーション
Packaging
- MLPQ-24
Order Codes
- SC415MLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
