SC414
Product inactive. Information on this page is for reference only.

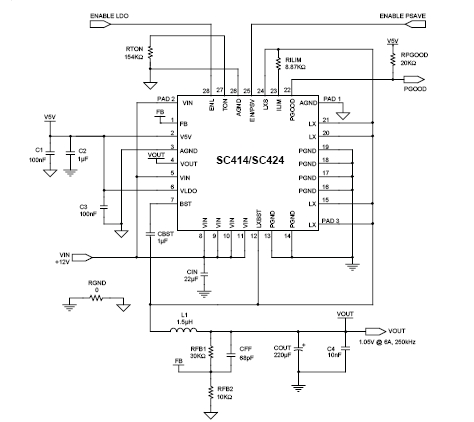

The SC414 is a stand-alone synchronous buck power supply. It features integrated power MOSFETs, a bootstrap switch, and a 5V LDO in a spacesaving MLPQ- 4x4mm 28-pin package. Press Release . . .
For selectable regular power-save see SC424 product page.
Features
- Input voltage - 3V to 28V
- Internal power MOSFETs - 6A
- Integrated bootstrap switch
- Smart power-save protection
- Integrated 5V, 150mA LDO with bypass capability
- TC compensated RDS(ON) sensed current limit
- Pseudo-fixed frequency adaptive on-time control
- Designed for use with ceramic capacitors
- Programmable VIN UVLO threshold
- Independent enable for switcher and LDO
- Selectable ultrasonic power-save (SC414)
- Internal soft-start and soft-shutdown at output
- Internal reference - 1% tolerance
- Over-voltage/under-voltage fault protection
- Power good output
- SmartDrive™
- Lead-free 4x4mm, 28 Pin MLPQ package
- Fully WEEE and RoHS compliant Applications
- Notebook, desktop, tablet, and server computers
- Networking and telecommunication equipment
- Printers, DSL, and STB applications
- Embedded applications
- Power supply modules
- Point of load power supplies
アプリケーション
Packaging
- MLPQ-28 4x4mm
Order Codes
- SC414MLTRT: Lead-Free, WEEE and RoHS Compliant, 3000pcs Tape and Reel Only
- SC414EVB: SC414 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC414
Part Description
6A ECOSPEED INTEGRATED FET REGULATOR WITH 5V LDO
# of leads
32
Package Type
MLPQ
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Please consult with your Semtech Sales Rep
