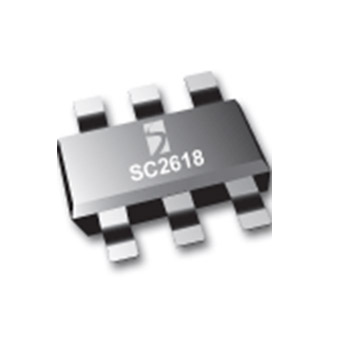

SC2618
Not Recommended for New Designs
Not recommended for new designs.
Features
- Operating Frequency up to 500 kHz
- Input supply from 5 V to 12 V
- 0.5 A gate drive capability
- Internal soft start
- Internal, trimmed bandgap reference (± 1%)
- Hiccup-mode short circuit protection
- Input supply sequence protection
- 6-lead SOT-23 package
- Graphics IC power supplies
- Embedded, low-cost, high-efficiency converters
アプリケーション
Packaging
- SOT-23-6
Order Codes
- SC2618SKTRT: Lead-Free, 3000 pcs per tape and reel
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2618
Part Description
MINIATURE PWM CONTROLLER FOR BUCK REGULATOR
# of leads
6
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
