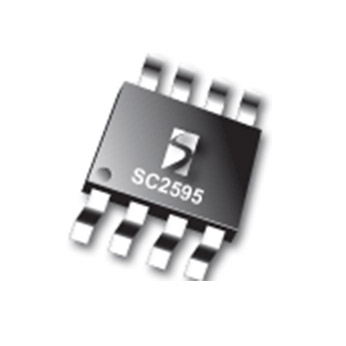

SC2595
Not Recommended for New Designs
Not recommended for new designs.
Features
- Regulates while sourcing or sinking 1.5 A
- AVCC range is from 2.5V to 5V
- Reference output
- Minimum number of external components
- Accurate internal voltage divider
- SOIC8-EDP package.Pb-free,Halogen free, and RoHS/WEEE compliant
- DDR memory termination
- High-speed data line termination
- PC motherboards
- Graphics boards
- Disk drives
- CD-ROM drives
アプリケーション
Packaging
- SOIC-8 EDP
Order Codes
- SC2595STRT: Pb-free, Halogen free, and RoHS/WEEE compliant, 2500 pcs. Tape & Reel
- SC2595EVB: SC2595 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2595
Part Description
INTEGRATED LINEAR DDR TERMINATION REGULATOR
# of leads
8
Package Type
SOIC
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
