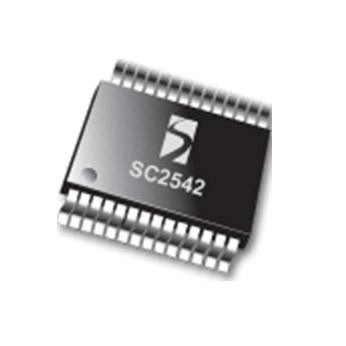

SC2542
Not Recommended for New Designs
Not recommended for new designs.
Features
- Independent dual-switcher-outputs
- Integrated 5V standby output with over 50mA capability
- Wide input voltage range: 6.5V ~ 28V
- Adjustable output voltage down to 0.75V
- Light load efficiency enhancement
- Programmable skip mode operation
- Flexible power sequencing with enable and power good output
- Synchronous buck topology with voltage mode control
- Out of phase operation to reduce cost of input capacitor
- 10V internal regulator for gate driver to deliver high efficiency
- Programmable switching frequency: 100KHz ~ 300KHz
- Full protection: UVLO, OVP, and programmable OCP
- No need for current sense resistor
- Low standby operating current (200μA typical)
- Low shut down current (100nA typical)
- 28 lead TSSOP package with exposed die pad (EDP)
- Fully WEEE package and RoHS Compliant
- Notebook computer system power
- Systems with 6.5V ~ 28V input
- Network and telecom systems
- Other portable devices
アプリケーション
Packaging
- TSSOP-28
Order Codes
- SC2542TETRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC2542EVB: SC2542 Evaluation Board
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC2542
Part Description
HIGH PERFORMANCE WIDE INPUT RANGE DUAL SYNCHRONOUS BUCK CONTROLLER
# of leads
28
Package Type
TSSOP-EP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
