SC194A

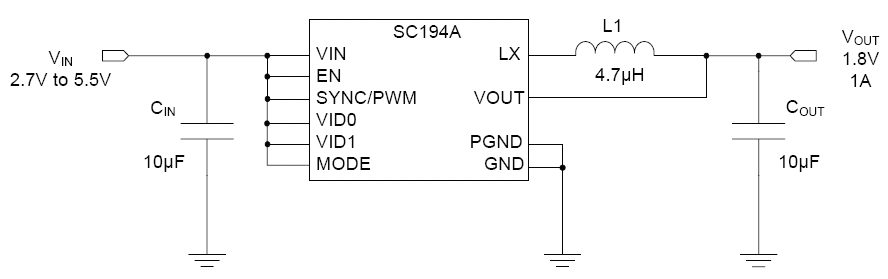

The SC194A is a synchronous step-down converter with integrated power devices.
Features
- Up to 95% efficiency
- Output current - 1A
- Input range - 2.7V to 5.5V
- Quiescent current - 17μA
- Four selectable output voltages
- Fixed 1MHz frequency or 750kHz to 1.25MHz synchronized operation
- PSAVE operation to maximize efficiency at light loads
- Minimal external components
- Fast transient response
- 100% duty cycle in dropout
- Soft-start
- Over-temperature and short-circuit protection

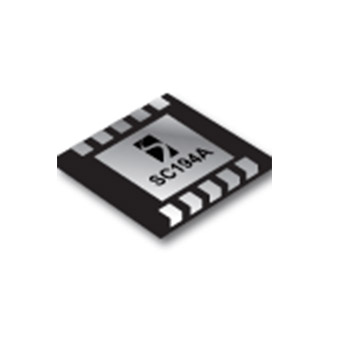

- Space-saving micro-lead frame, lead-free package MLP-10, 3 x 3mm
- Cell phones
- Wireless communication chipset power
- Personal media player
- Notebook and sub-notebook computers
- PDAs and mobile communicators
- WLAN peripherals
アプリケーション
Packaging
- MLP-10
Order Codes
- SC194AMLTRT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
