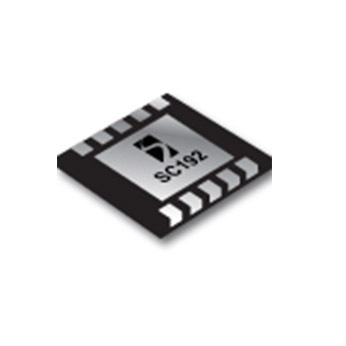

SC192
Not Recommended for New Designs
Not recommended for new designs.
Features
- 2.7 V to 7 V Input Range
- Output adjustable from 0.75 V to Vin
- Fixed frequency or PSAVE for maximum efficiency over wide load current range
- 700 mA guaranteed output current
- No Schottky diode required
- 35 µA quiescent current
- 100% duty cycle in dropout
- 95% efficiency
- Fast transient response
- Over-temperature protection
- Space-saving micro lead-frame package MLPD-10 3x3
- Cell phones
- Cordless phones
- Notebook and subnotebook computers
- PDAs and mobile communicators
- Devices powered by 1 Li-ion cell or 3 NiMH/NiCd cells
アプリケーション
Packaging
- MLP-10
Order Codes
- SC192IMLTR: Package Minimum Tape & Reel Only
- SC192IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC192
Part Description
SYNCHRONOUS BUCK CONVERTER WITH INTEGRATED POWER DEVICES
# of leads
10
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
