SC187
The SC187 is a 4A synchronous step-down regulator designed to operate with an input voltage range of 2.9V to 5.5V. The device offers fifteen pre-determined output voltages via four control pins programmable from 0.8 to 3.3 Volts. The control pins allow for on-the-fly voltage changes, enabling system designers to implement dynamic power savings. The device is also capable of adjusting output voltage via an external resistor divider.
Features
- Input voltage range — 2.9V to 5.5V
- Output voltage range- 0.8V to 3.3V
- Output current — up to 4A
- Ultra-small footprint — <1mm height solution
- Minimum 1.8MHz switching frequency with no AM radio band interference
- Efficiency up to 95%
- Low output noise across load range
- Excellent transient response
- Start up into pre-bias output
- Duty-cycle low dropout operation — 100%
- Shutdown current — <1μA
- Externally programmable soft start time
- Power good indicator
- Input under-voltage lockout
- Output over-Voltage, Current limit protection
- Over-temperature protection
- Thermally enhanced 3 x 3 x 0.6 (mm)
- MLPQ-UT16 package
- Temperature range — -40 to +85°C
- Lead-free, Halogen free, and RoHS/WEEE compliant
- Automotive power supplies
- Routers and network cards
- LCD TV
- Office automation
アプリケーション
Packaging

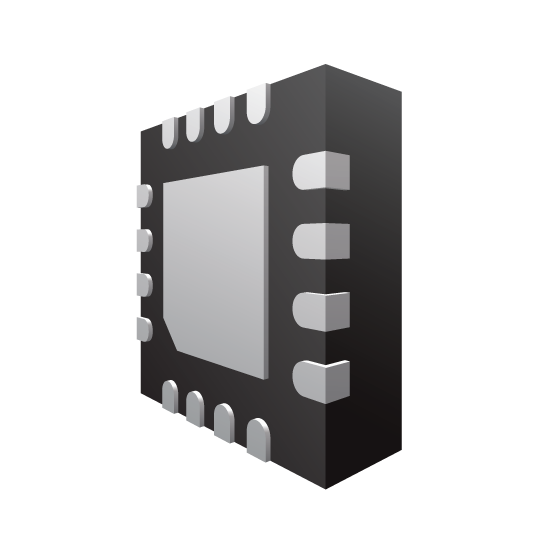

- MLPQ-UT16 package 3 x 3 x 0.6mm
Order Codes
- SC187ULTRT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC187U
Part Description
4A, 2.2MHZ SYNCHRONOUS STEP-DOWN REGULATOR WITH 15 PRESET OUTPUT VOLTAGES
# of leads
16
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
