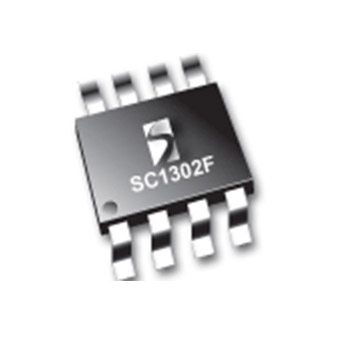

SC1302F
Not Recommended for New Designs
Features
- +4.5 V to +16.5 V operation
- Fast rise and fall times (20 ns typical with 1000 pf load)
- Dual MOSFET driver
- 2 A peak drive current
- 40 ns propagation delay
- 8-pin SOIC / MSOP packages
- Enable/disable control
- TTL-compatible input
- Under-voltage lockout with hysteresis
- Low shutdown supply current
- Over-temperature protection
- ESD protection
- Dual non-inverting configuration (SC1302A, SC1302D)
- Switch-mode power supplies
- Battery-powered applications
- Solenoid and motor drives
アプリケーション
Packaging
- SOIC-8
Order Codes
- SC1302FSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1302F
Part Description
DUAL HIGH SPEED LOW-SIDE MOSFET DRIVER
# of leads
8
Package Type
SOICNM
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
