SC1211
Product is not recommended for new design.

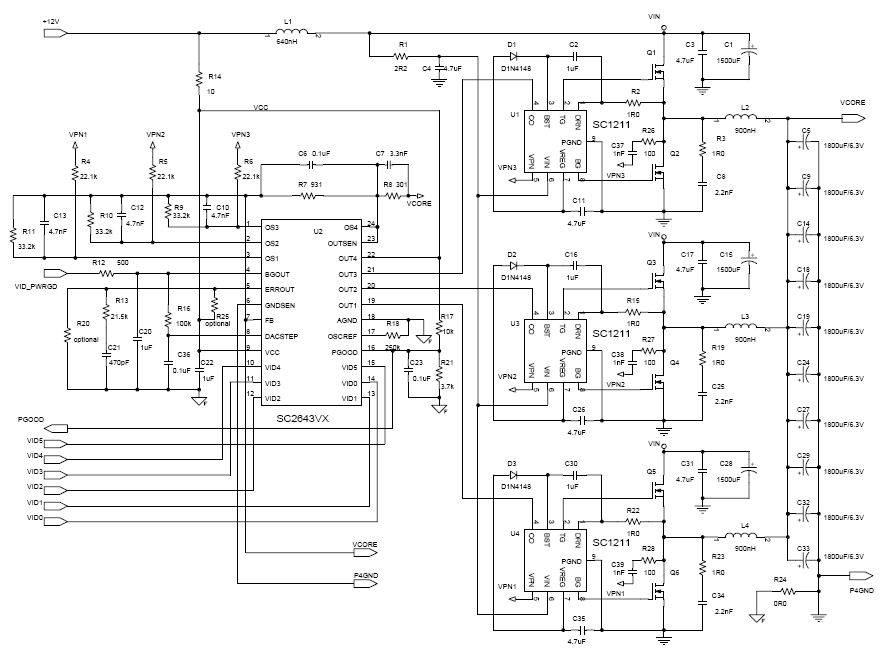

The SC1211 is a high speed, Combi-Sense, dual output driver designed to drive high-side and low-side MOSFETs in a synchronous Buck converter. These drivers combined with Combi-Sense PWM controllers, such as Semtech SC2643VX or SC2643, provide a cost effective multi-phase voltage regulator for advanced microprocessors.
Features
- High efficiency
- +12V supply voltage with internal LDO for optimum gate drive
- High peak drive current
- Adaptive non-overlapping gate drives provide shoot-through protection
- Support Combi-SenseTM and VID-on-fly operations
- Fast rise and fall times (15ns typical with 3000pf load)
- Ultra-low (<30ns) propagation delay (BG going low)
- Floating top gate drive
- Crowbar function for over voltage protection
- High frequency (to 1.5 MHz) operation allows use of small inductors and low cost ceramic capacitors
- Under-voltage-lockout
- Low quiescent current
- Intel Pentium® processor power supplies
- AMD Athlon™ and AMD-K8™ processor power supplies
- High-current low-voltage DC-DC converters
アプリケーション
Packaging

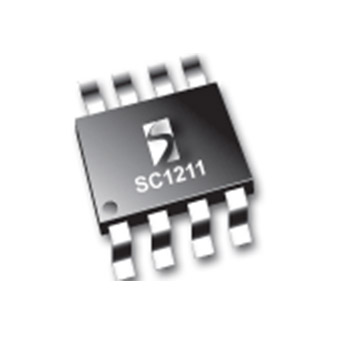

- SOIC-8 EDP
Order Codes
- SC1211STR: Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC1211
Part Description
COMBI-SENSE DRIVER WITH L.D.O
# of leads
8
Package Type
SOICEP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
Related Parts
SC1211VXSTRT
