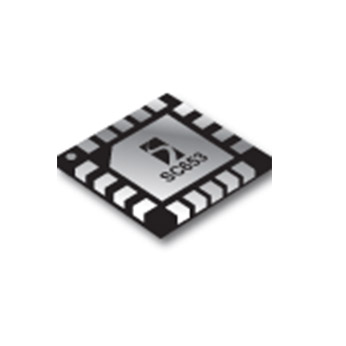

SC653
Not Recommended for New Designs
Not recommended for new designs.
The SC653 is a highly integrated light management unit that provides two low-noise LDOs, a multi-mode high efficiency charge pump, and four programmable LED drivers. Performance is optimized for use in single-cell Liion battery applications.
Features
- Input supply voltage range — 2.9V to 5.5V
- Four programmable current sinks with 29 steps from
0mA to 25mA - Very high effi ciency charge pump driver system with
three modes — 1x, 1.5x and 2x - One programmable 100mA low-noise LDO regulator
- One programmable 150mA low-noise LDO regulator
- Charge pump frequency — 250kHz
- SemPulse® single wire interface
- Backlight current accuracy — ±1.5% typical
- Backlight current matching — ±0.5% typical
- Fade-in/fade-out feature for main backlight
- Automatic sleep mode (LEDs off ) — IQ = 100μA
- Shutdown current — 0.1μA (typical)
- Ultra-thin package — 2.3 x 2.3 x 0.6 (mm)
- Fully WEEE and RoHS compliant
- Cellular phones, smart phones, and PDAs
- LCD modules
- Portable media players
- Digital cameras and GPS units
- Display backlighting and LED indicators
アプリケーション
Packaging
- MLPQ-UT-18
Order Codes
- SC653ULTRT: Lead-Free, WEEE and RoHS compliant, 3000 pcs, Tape and Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC653
Part Description
LIGHT MANAGEMENT UNIT WITH 2 LDOS AND SEMPULSE INTERFACE
# of leads
18
Package Type
MLPQ-UT
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
2
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
