SC630
Not Recommended for New Designs
Not recommended for new designs.
Features
- Input voltage range — 2.9V to 5.5
- VOUT tolerance 3.3V ±3%
- VOUT regulation (line + load) ±2%
- Continuous output current — 400mA
- Peak output current — 500mA
- Three charge pump modes — 1x, 1.5x and 2x
- Output ripple ≤ 20mVpp for IOUT ≤ 400mA
- Short circuit, over-voltage, and over-temperature protection
- Soft-start functionality
- Shutdown current — 0.1μA, typical
- Ultra thin package — 2 x 2 x 0.6 (mm)
- Fully WEEE and RoHS compliant
- Mobile phone
- MP3 players
- Multi-LED backlit LCDs
- Compact fl ash/CF+ products
- PMPs
- Digital video cameras
- Digital still cameras
- PDAs
アプリケーション
Packaging

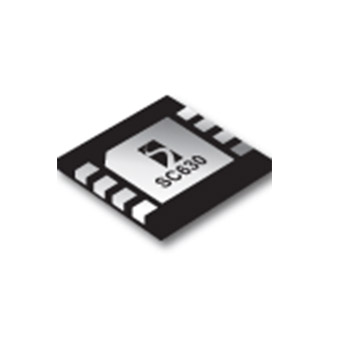

- MLPD-UT-8 (2x2x0.6mm)
Order Codes
- SC630ULTRT: Lead-free package, fully WEEE and RoHS compliant, tape and reel only.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC630
Part Description
1MHZ FIXED 3.3V OUTPUT CHARGE PUMP REGULATOR
# of leads
8
Package Type
MLPD-UT-8
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
