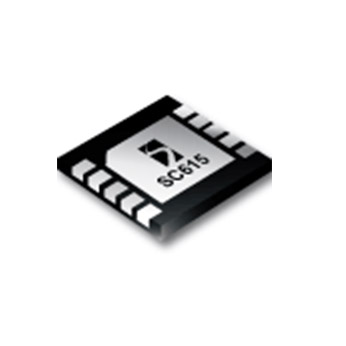

SC615
Not Recommended for New Designs
Not recommended for new designs.
Features
- 500mA Output Current - Flash Mode
- 3.0V to 5.25V Input Range
- Two Selectable Modes - Flash and Spotlight
- External Flash Control Pin for Synchronization to a Camera Module or Graphics Controller
- Spotlight Mode Current Setting - 100mA
- Short Circuit, Over-Voltage, and Over-Temperature Protection
- Soft-Start Functionality
- Two Control Inputs for Maximum Versatility
- Shutdown Current < 2µA
- Micro Lead-frame Package MLPD-10, 3mm x 3mm
- Mobile Camera Phones
- Digital Cameras
- PDAs with Built-in Cameras
- Multi-LED Backlit LCDs
アプリケーション
Packaging
- MLPD-10 (3X3 mm)
Order Codes
- SC615IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
