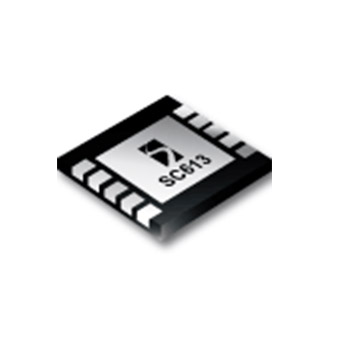

SC613
Not Recommended for New Designs
Not recommended for new designs.
Features
- Small size – MLP micro 10-lead 3 x 3 mm package
- Selectable 5.0 V or 4.5 V output voltage
- 140 mA available with 4.5 V output
- 100 mA available with 5.0 V output
- Short-circuit protection
- Soft start function
- Shutdown current < 2 µA
- Selectable fixed frequencies of 262 kHz and 650 kHz
- Low ripple
- Regulated to ± 5%
- Ease of use
- Cellular phones
- LED photo flash for cellular phones
- LED backlighting
- PDA power supplies
- Portable electronics
- Electronic books
- Wireless web appliances
アプリケーション
Packaging
- MLPD-10 (3x3x1mm)
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC613
Part Description
LOW NOISE REGULATED CHARGE PUMP WITH SELECTABLE OUTPUT
# of leads
10
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
