SC606
Not Recommended for New Designs
Not recommended for new designs.

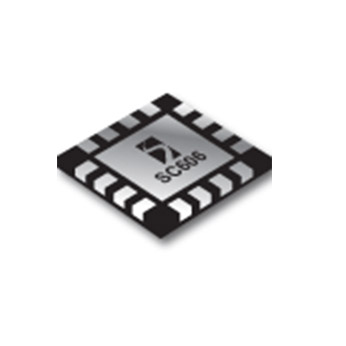

The SC606 is a very high efficiency charge pump white/color LED driver from the mAhXLife™ family of products. It is optimized for Li-Ion battery applications. The LED current is regulated to a value configured by the user through an I2C compatible serial interface.
Features
- Very high efficiency over 90% of battery life
- Current regulation for 6 LEDs
- Current matching tolerance of ± 3.5% from LED to LED
- Current is accurate to ± 6.5% of the specified value
- Wide current range per LED [0.5mA - 32mA]
- High available total LED current = 6*ILED = 120 mA
- I2C bus limited compatibility
- Low shutdown current: 0.1 µA typical
- Soft start / inrush current limiting
- Short-circuit / thermal protection
- 1.33 MHz and 250 kHz programmable fixed frequency
- Separate brightness zones for multiple displays
- Three charge pump modes of operation: 1x, 1.5x and 2x
- Open LED output protection
- MLP-16 [4x4] package
- Cellular phones
- LED backlighting
- PDA power supplies
- Portable electronics
- Electronic books
- Handheld computers
- Wireless web appliances
アプリケーション
Packaging
- MLPQ-16 (4X4 mm)
Order Codes
- SC606AIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC606
Part Description
LOW NOISE SMART LED DRIVER WITH SERIAL INTERFACE
# of leads
16
Package Type
MLP
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
