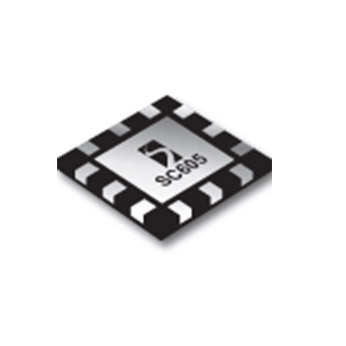

SC605
Not Recommended for New Designs
Not recommended for new designs.
Features
- Two selectable modes - Flash and Spotlight
- Up to 700mA output - Flash mode
- Up to 280mA output - Spotlight mode
- 500mA output over specified temperature and voltage ranges - Flash mode
- Spotlight mode selectable to 20%, 30% and 40% of Flash current
- 3.0V to 5.25V input range
- Flash control pin for synchronization to a camera module or graphics controller
- Short circuit, over-voltage and over-temperature protection
- Soft-start functionality
- Three control inputs for maximum versatility
- Shutdown current < 2µA
- Micro-lead package MLPD-12, 3mm x 3mm
- Mobile Camera Phones
- Digital Cameras
- PDAs with Built-in Cameras
アプリケーション
Packaging
- MLPD-12 (3X3 mm)
Order Codes
- SC605MLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
