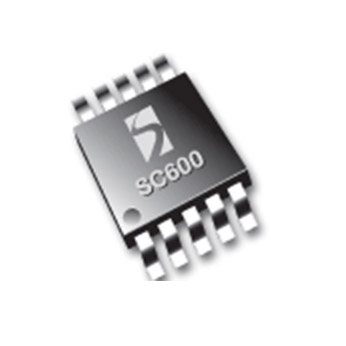

SC600
Not Recommended for New Designs
Not recommended for new designs.
The SC600 is a versatile charge pump designed for use in battery operated power supply applications. The wide input range is matched for Li-Ion battery applications. mAhxLife LED Drivers feature a fractional charge pump implementation with efficiency comparable to a switching regulator without costly inductors.
Features
- Small size: MLP micro 10-lead 3x3 mm or MSOP-10 package allows for a complete solution in .05 sq. in.
- Peak efficiency over 90% (extends battery life)
- Four component versions available
- 60 mA versions available in 5.0 V and 4.5 V output
- 120 mA versions available in 4.5 V and 4.0 V output
- Short-circuit and over-temperature protection
- Soft-start function
- Shutdown current < 1 µA
- Selectable fixed frequencies: 8 kHz, 32 kHz, 262 kHz, 650 kHz
- Low input and output ripple
- Regulated to ± 5%
- Cellular phones
- LED backlighting
- PDA power supplies
- Portable electronics
- Electronic books
- Handheld computers
- Wireless web appliances
アプリケーション
Packaging
- MLPD-10 (3x3x1 mm), MSOP-10
Order Codes
- SC600AIMLTR: Package Minimum Tape & Reel Only
- SC600AIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600AIMSTR: Package Minimum Tape & Reel Only
- SC600AIMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600BIMLTR: Package Minimum Tape & Reel Only
- SC600BIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600BIMSTR: Package Minimum Tape & Reel Only
- SC600BIMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600CIMLTR: Package Minimum Tape & Reel Only
- SC600CIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600CIMSTR: Package Minimum Tape & Reel Only
- SC600CIMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600DIMLTR: Package Minimum Tape & Reel Only
- SC600DIMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
- SC600DIMSTR: Package Minimum Tape & Reel Only
- SC600DIMSTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC600A
Part Description
MAHXLIFE LED DRIVER WITH 5.0V, 4.5V OR 4.0V OUTPUT
# of leads
10
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
