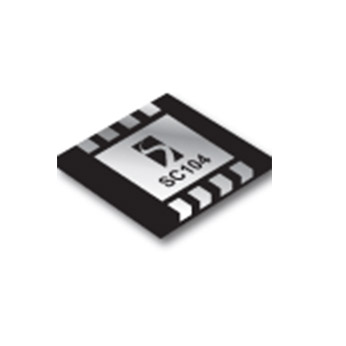

SC104
Not Recommended for New Designs
Not recommended for new designs.
Features
- Adjustable output current using pulse-width modulation or analog voltage input
- 38 V output capability supports up to 10 white LEDs
- Wide range of input voltages: 1.55 V to 10 V
- Low quiescent current
- 0.5 µA standby current in shutdown
- Programmable cycle-by-cycle current limit
- Surface mount packaging (3 x 3 mm 8-pin MLP)
- Output voltage and over-temperature protection
- White LED supplies
- Color LED supplies
- Cellular phones
- PDAs
- Electronic books
- Handheld computers
- Wireless web appliances
アプリケーション
Packaging
- MLP-8
Order Codes
- SC104IMLTR: Package Minimum Tape & Reel Only
- SC104IMLTRT: Lead-Free, RoHS and WEEE Compliant, Package Minimum Tape & Reel Only
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC104
Part Description
MICRO POWER CONSTANT-CURRENT DC-DC CONVERTER
# of leads
8
Package Type
MLPD
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
