- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV (Air), 30kV (Contact)
- IEC 61000-4-4 (EFT) 2kV (5/50ns)
- IEC 61000-4-5 (Lightning) 30A (8/20μs)
- Bias diodes prevent charging of TVS capacitance
- Working Voltage Options: 8V, 12V, 20V, 24V
- Low Capacitance: 2.5pF Maximum
- Low Capacitance Variation (1V to VRWM)
- Solid-State Silicon-Avalanche Technology
- Pb-Free, Halogen Free, RoHS/WEEE Compliant,
- ADSLx / VDSLx Secondary Protection
- G.Fast Line Driver Secondary Protection
- VSDL2 Class-H Line Driver Secondary Protection
- Access Equipment
- Central Office Equipment
- Customer Premise Equipment

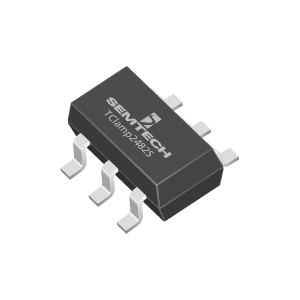

- JEDEC SOT-23 6L Package: 3.1 x 2.8 x 1.45 mm 3,000 pcs
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
