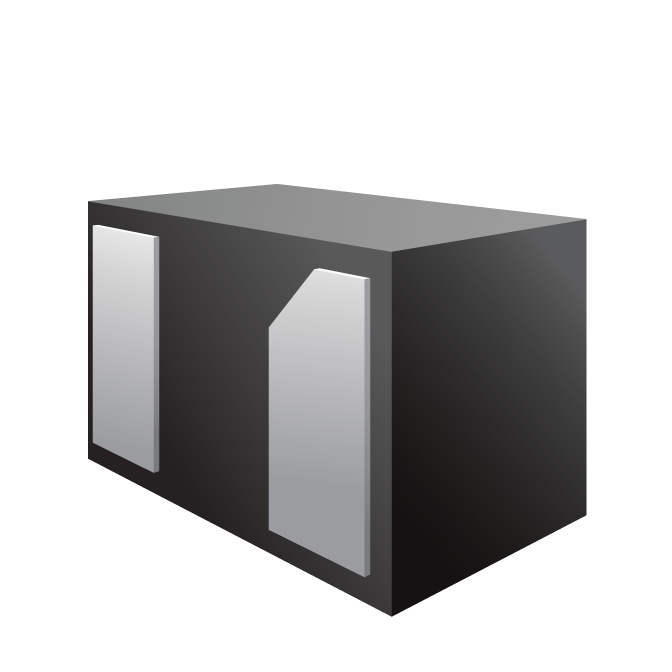

RClamp1851PQ
RClamp®1851PQ is specifically designed for protection of near field communications (NFC) interfaces. It features extremely efficient electrostatic discharge (ESD) protection characteristics including a low typical dynamic resistance of 0.18 Ohms, low peak ESD clamping voltage and high ESD withstand voltage (+/-17kV contact per IEC 61000-4-2).
Features
- High ESD withstand voltage: +/-17kV (contact) and +/-20kV (air) per IEC 61000-4-2
- Protects one high speed data line
- Qualified to AEC-Q100, Grade 1 and AEC-Q101
- Low ESD clamping voltage
- Working voltage: 18V
- Low capacitance: 0.37pF typical
- Low leakage current
- Low dynamic resistance: 0.18Ohms typical
- Solid-state silicon-avalanche technology
- Near field communication (NFC) lines
- RF signal lines
- FM/DAB/Telematics/GPS antenna
- Automotive and industrial applications
アプリケーション
Packaging
- DFN 1.0 x 0.6 x 0.55mm 2-Lead
Order Codes
- RClamp1851PQ.C
プロトタイプ作成と制作に役立ち、ダウンロード可能な豊富なリソースとデータシートを活用しましょう。
